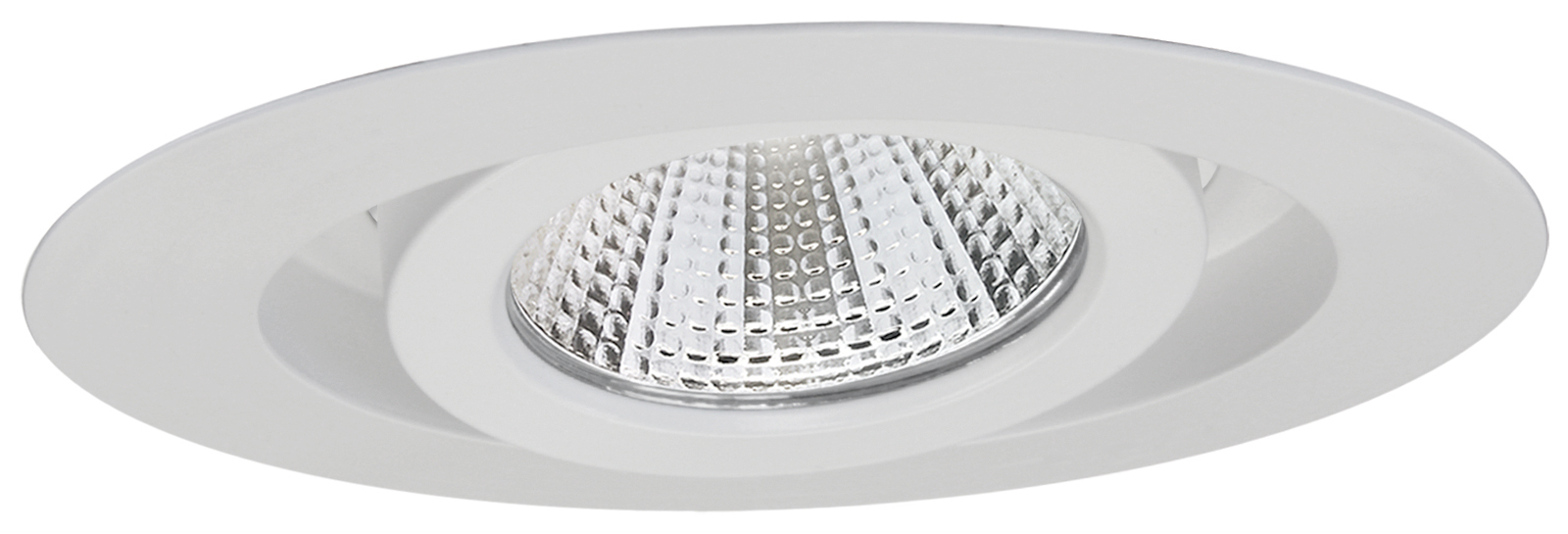

With anti-reflective protective glass. Aluminum reflector silver, individually anodized.
Passive cooling system made of aluminum. Luminaire housing made of aluminum and steel. Suface powder-coated in white, black or RAL.
Lamp head can be swiveled on a gimbal, 30°/35°.
LED Type 16, 26
Small Flux
low power
LED Type 17, 27
Mid Flux
optimised power
LED Type 18, 28
High Flux
high power
ET 145 mm
DA Ø 147 mm
AD 160 mm
Article
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
12280.
16
2040 lm
2170 lm
2220 lm
2230 lm
17 W
17
2850 lm
3030 lm
3100 lm
3110 lm
23 W
18
4230 lm
4490 lm
4600 lm
4610 lm
33 W
CRI 90
12280.
26
1750 lm
1840 lm
1830 lm
1860 lm
17 W
27
2440 lm
2560 lm
2540 lm
2590 lm
23 W
28
3620 lm
3800 lm
3780 lm
3850 lm
33 W
| ► | Example Article-Number-Key |
Diese Leuchte ist auf Nachfrage auch in weiteren Lichtfarben, wie 3100 K (Pearl-White), erhältlich.
Reflector angles for LED types
16-18, 26-28
| S | Spot | 19° |
| M | Medium | 23° |
| XM | Medium wide | 28° |
| F | Flood | 37° |
| XF | Super-Flood | 60° |
