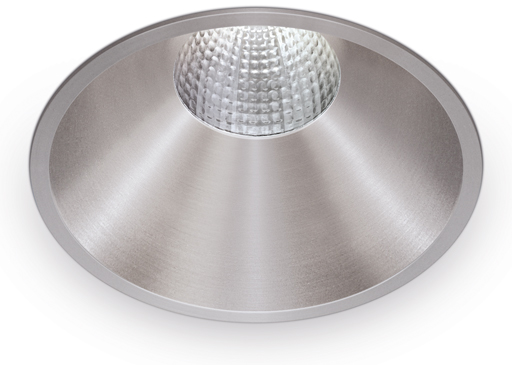

With anti-reflective protective glass. Aluminum reflector silver, individually anodized.
Passive cooling system made of aluminum. Luminaire housing made of aluminum and steel. One-piece aluminum end ring, conically milled. Surface scotch and zaponed or gold anodized. Surface also available powder-coated in white, black or RAL.
LED Type 13, 23
Small Flux
low power
LED Type 14, 24
Mid Flux
optimised power
LED Type 15, 25
High Flux
high power
ET 120 mm
AD Ø 94 mm
AD Ø 100 mm
Article
Ø
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
12940.
100 mm
13
1540 lm
1640 lm
1680 lm
1680 lm
14 W
14
2160 lm
2290 lm
2350 lm
2360 lm
19 W
15
2940 lm
3130 lm
3200 lm
3210 lm
26 W
CRI 90
12940.
100 mm
23
1270 lm
1330 lm
1380 lm
1400 lm
14 W
24
1780 lm
1860 lm
1930 lm
1960 lm
19 W
25
2430 lm
2540 lm
2630 lm
2680 lm
26 W
| ► | Example Article-Number-Key |
Reflector angles for LED types
13-15, 23-25
| S | Spot | 19° |
| M | Medium | 23° |
| F | Flood | 37° |
