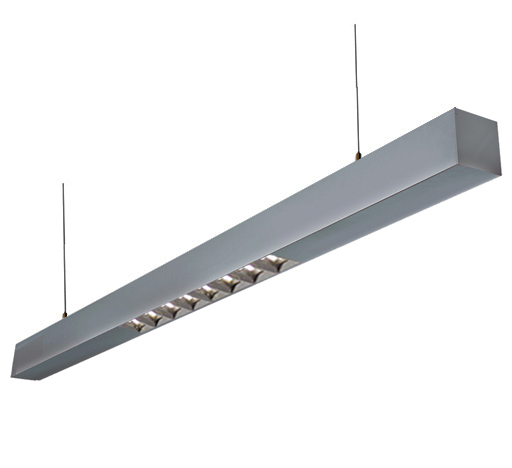

Direct/indirect distribution. With lens module with 50° or 80° grid, centered.
Luminaire housing made of sharp-edged aluminum profile. Surface powder-coated in silver, white, black or RAL.
Suspended with quick clamping system, height adjustable without tools.
LED Type 71
Small Flux
low power
LED Type 72
Mid Flux
optimised power
LED Type 73
High Flux
high power
L 1150-1710 mm
Article
LED Type
2700 K
3000 K
4000 K
Power
Länge 1150 mm
93054.
71
4370 lm
4560 lm
4690 lm
46 W
72
6220 lm
6480 lm
6660 lm
62 W
73
8330 lm
8710 lm
8970 lm
78 W
Länge 1430 mm
93055.
71
5100 lm
5320 lm
5480 lm
49 W
72
7240 lm
7560 lm
7770 lm
67 W
73
9770 lm
10230 lm
10550 lm
87 W
Länge 1710 mm
93056.
71
5830 lm
6090 lm
6280 lm
49 W
72
8260 lm
8640 lm
8890 lm
67 W
73
11200 lm
11760 lm
12140 lm
87 W
