Luminaire Configurator
Please make a selection in each field. Then click "Specific downloads & enquiry list" to get downloads for the configured luminaire, or to add the luminaire to the request list.
Downloads

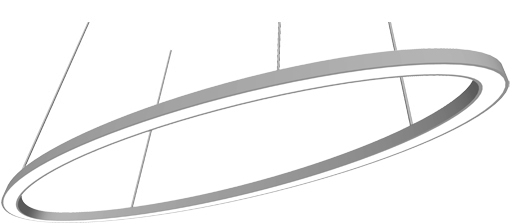

Direct distribution. Acrylic cover in opal.
Luminaire housing made of aluminium and steel. Surface powder-coated in white, black or RAL.
Luminaire completely closed with ready-to-connect wiring.
LED Type 93
Small Flux
low power
LED Type 94
Ultra Flux
extra high power
H 45 mm
B 50 mm
L 2 x 1 m L 2,5 x 1,25 m L 3 x 1,5 m
Article
Ø
LED Type
2700 K
3000 K
4000 K
Power
CRI 90
41640.
2 x 1 m
93
5050 lm
5620 lm
5620 lm
90 W
94
7030 lm
7820 lm
7820 lm
125 W
CRI 90
41650.
2,5 x 1,25 m
93
6510 lm
7250 lm
7250 lm
123 W
94
9060 lm
10090 lm
10090 lm
168 W
CRI 90
41660.
3 x 1,5 m
93
7710 lm
8580 lm
8580 lm
132 W
94
10730 lm
11940 lm
11940 lm
185 W
| ► | Example Article-Number-Key |
