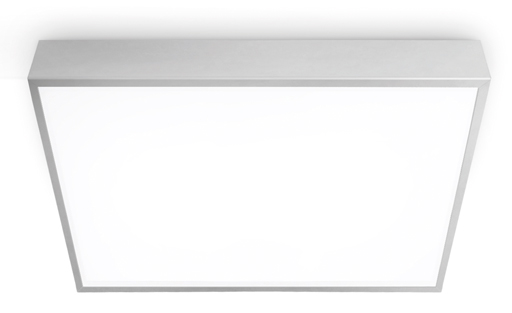

Direct distribution. Luminaire with inserted acrylic diffuser in opal. Aluminum reflector in silver.
Mounting plate made of sheet steel. Housing made of sharp-edged aluminum profile. Visible parts powder-coated in silver, white, black or RAL.
Top housing can be removed without tools.
LED Type 14, 24
Mid Flux
optimised power
LED Type 15, 25
High Flux
high power
L 580 mm
H 70 mm
H 70 mm
B 580 mm
Article
LED Type
2700 K
3000 K
3500 K
4000 K
Power
CRI 80
81370.
14
5100 lm
5250 lm
5340 lm
5550 lm
47 W
15
7020 lm
7230 lm
7350 lm
7620 lm
66 W
CRI 90
81370.
24
4530 lm
4920 lm
4860 lm
4980 lm
47 W
25
6270 lm
6750 lm
6720 lm
6870 lm
66 W
